Illustration of blob feature extraction

Input image

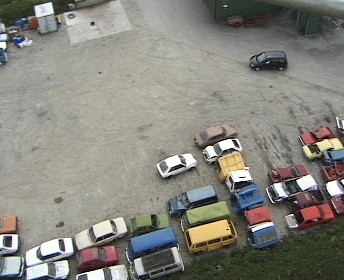

Input image. An image captured from the WITAS platform at the Revinge test site.

Blob features Result of blob feature extraction. The blobs are visualised as ellipses painted on a green background.
Region image Reprojection of blob colours to the corresponding image regions. Green signifies inhomogeneous regions, i.e. green pixels have not been assigned to any region.
